3inch Line Stop Head - Dalpera

Description:

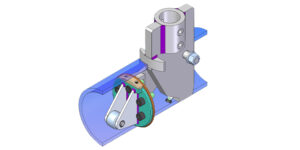

The LineStop Heads (also named Pivoting Heads or Stopple Head or Plugging Heads ) are used, after hot tapping operation, as a mechanical stoppers. They are introduced by Line Stop Actuator to stop the flow in the pipeline. Our LineStop Heads are compatible with TDW brand Line Stop Actuator.

Technical Specification :

Range of Sizes	2” to 48”
Pressure Rating	ANSI Class 150#, 300#, 600#
Working Temperature	-20ºC to 250ºC

Size		Class 150#		Class300#		Class 600#
Inch	mm	Lbs	Kg	Lbs	Kg	Lbs	Kg
4”	100	6	3	6	3	7	3
6”	150	20	9	23	10	25	11
8”	200	41	18	45	20	50	23
10”	250	73	33	81	37	90	41
12”	300	122	55	135	61	150	68
14”	350	150	68	167	76	185	84
16”	400	211	96	234	106	260	118
18”	450	369	168	410	186	455	207
20”	500	425	193	473	215	525	239
22”	550	543	247	603	274	670	305
24”	600	705	320	789	356	870	395
26”	650	851	387	945	430	1050	477
30”	750	1304	593	1449	659	1610	732
32”	800	1823	828	2025	920	2250	1023
34”	850	2317	1053	2574	1170	2860	1300
36”	900	2450	1114	2723	1238	3025	1375
40”	1000
42”	1050
