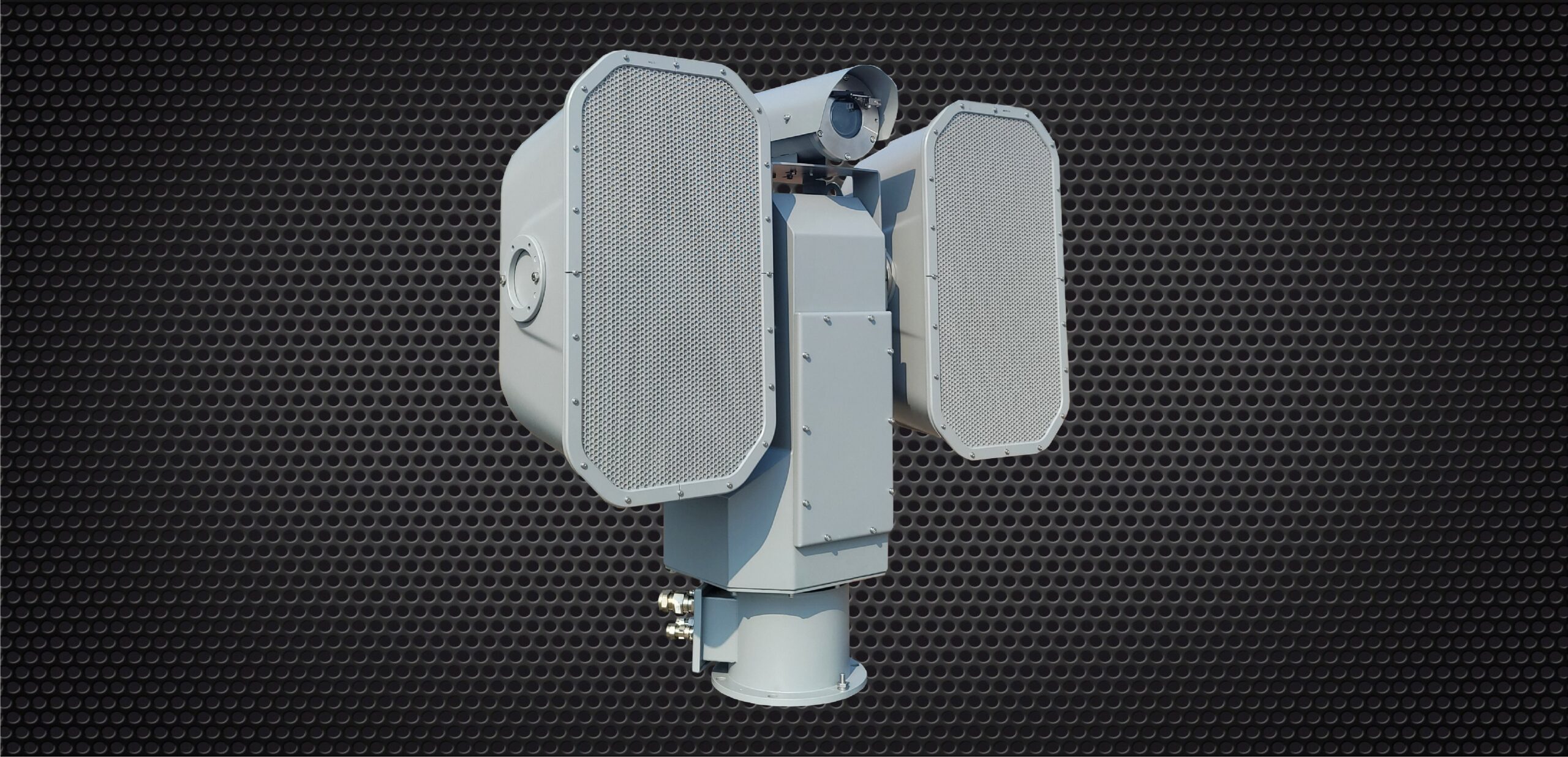

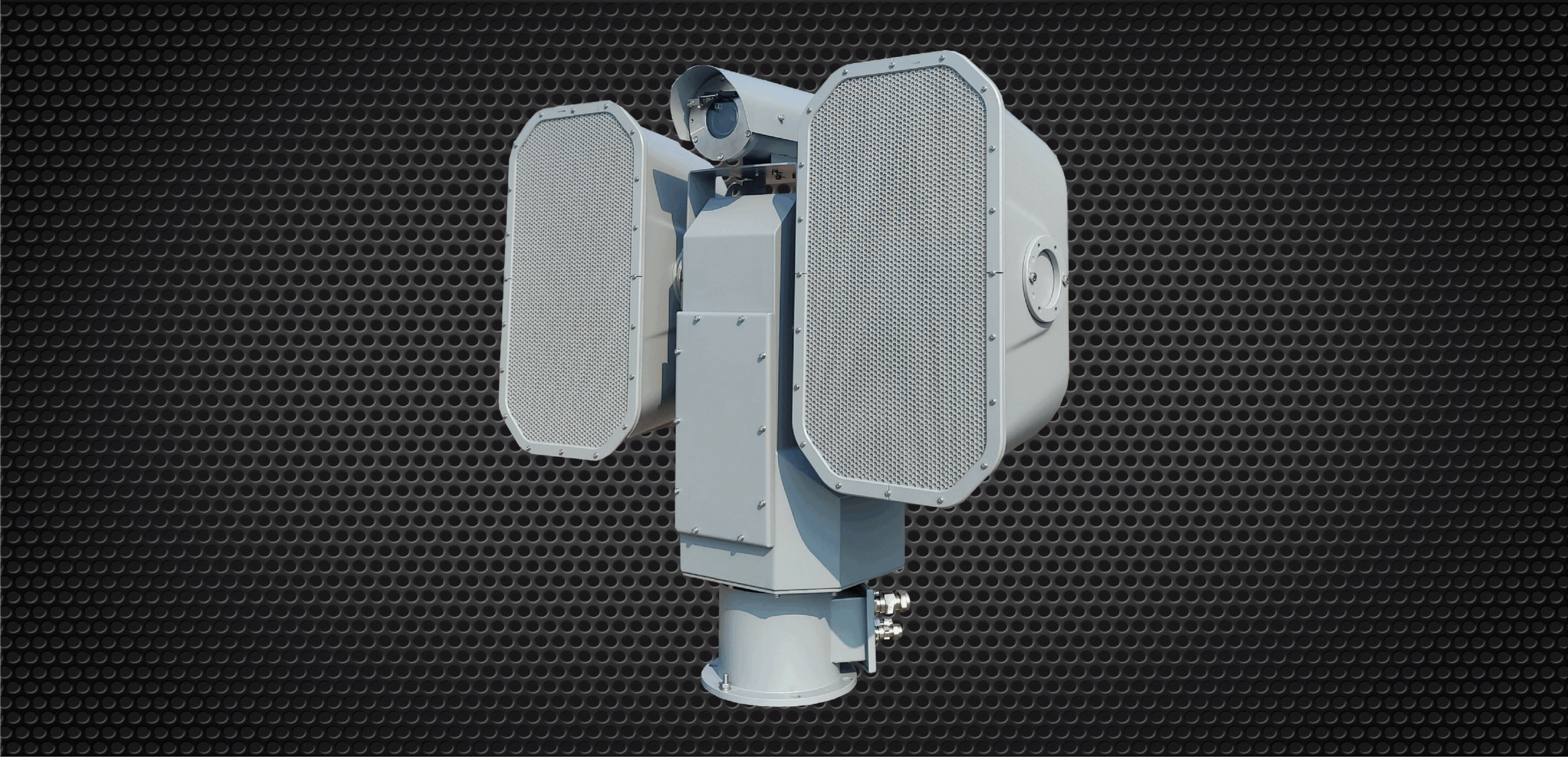

500RXL – High-Power Directional Acoustic System.
Long Range Acoustic Device 500RXL by Revoluce is a compact yet powerful directional acoustic system engineered for demanding defence, maritime, industrial and border security environments. Optimized for clear voice transmission, high-intensity warning tones, and focused long-range output, the 500RXL maintains exceptional intelligibility even in high-noise, offshore, and extreme climate conditions.
With an effective audible range of up to 3.5 km and a broad 200–9,000 Hz frequency spectrum—including the critical 1,000–4,000 Hz band most responsive to human and avian hearing— the Revoluce 500RXL delivers unmatched communication precision and deterrence capability.
Its ±15° directional beam angle ensures highly targeted acoustic projection with minimal noise spill, while continuous 360° servo-driven rotation and sweep speeds of up to 50° per second enable rapid target tracking for crowd control, coastal surveillance, border patrol, and wildlife management applications.
Built using advanced straight-sound projection technology, the 500RXL achieves peak sound pressure levels of up to 158.3 dB at 1 kHz, independently certified by the Korea Marine Equipment Research Institute (KOMERI). This level of performance ensures dominance in long-range communication and non-lethal deterrence scenarios.
Designed for operational endurance, the system integrates LiFePO₄ (lithium iron phosphate) battery systems with optional auxiliary alternator support, enabling extended autonomous missions while minimizing maintenance.
Engineered for harsh climates, the 500RXL features an IP67-rated weatherproof enclosure, ensuring reliable operation across Indian, UAE, GCC, coastal, desert, and high-humidity environments.
With increasing demand for maritime security, disaster-warning systems, coastal defence, industrial safety, and critical-infrastructure protection, the Revoluce 500RXL stands out as a professional-grade, mission-ready, long-range acoustic solution for government, defence, and industrial operators.
Parameter | Value |
|---|---|
| Maximum Peak SPL | 158 dB @ 1 m (A-Weighted) |
| Frequency Response | 300Hz – 8.0kHz |
| Beamwidth / Directivity | +/- 15 Degrees at 1kHz/-3dB |
| Communication Range | Above 3,500m |
| Rated Power (RMS) | RMS 1,200W |
Hot Operating Temperature | + 50 ℃ |
Cold Operating Temperature | – 35 ℃ |
| Ingress Protection | IP67 – Waterproof / Dustproof |
| Dimensions (H × W × D) | 1,090mm x 1,118mm x 471mm |
| Weight | 134kg |
Applications of the 500RXL
The 500RXL Long Range Acoustic Device is designed for professional long-range voice communication, emergency warning, and non-lethal deterrence across demanding operational environments. Its focused acoustic beam and high sound output make it suitable for maritime, defence, industrial, and public safety applications where clear communication over long distances is essential.
Typical applications include Indian Navy and Coast Guard vessels, port authorities, offshore platforms, border security, coastal surveillance, critical infrastructure, airports, correctional facilities, emergency management, and disaster warning systems. The 500RXL is also deployed for crowd management, wildlife control, industrial safety, and perimeter protection where reliable long-range communication is required in harsh environmental conditions.
Why Choose Dalpera?
- Defence & Maritime Expertise: Specialised in Long Range Acoustic Devices for defence, maritime security, ports and critical infrastructure.
- Technical Consultation: Assistance in selecting the right system based on operational requirements and deployment environment.
- Global Manufacturing Partners: Solutions supplied from internationally recognised manufacturers with proven operational performance.
- System Integration Support: Guidance for installation, commissioning and integration with existing surveillance and security systems.
- India-Focused Support: Local documentation, technical assistance and responsive customer support across India.
- Complete Project Assistance: Support from product selection through deployment and after-sales service.
Typical Deployment Environments
- Indian Navy vessels
- Coast Guard patrol craft
- Commercial ports
- Offshore platforms
- Coastal surveillance stations
- Border security checkpoints
- Industrial facilities
- Airports
- Government infrastructure
- Emergency response vehicles
