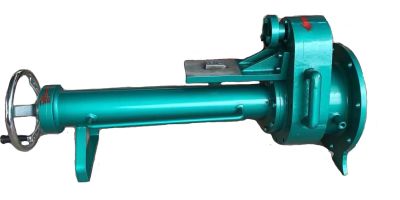

Electrical Hot Tapping Machine
Electrical Hot Tapping Machine
Introduction :
* hot tapping machine is designed for making entries into the pipelines under pressure
* hot tapping machine is used to provide a branch off pipeline from existing main pipe
* hot tapping machine is used to provide a branch off pipeline from existing main pipe
* suit for Carbon Steel Pipe, Ductile Iron Pipe, Cast Iron Pipe, Plastic Pipe, AC pipe and etc
* suit for water, oil, gas, heat lines with the operation pressure within 2.5 Mpa
Advantages :
* No disruption to the system operation
* Removable motor, easy handling
* Explosion Proof Motor for pipeline with flammable medium such as crude oil, natural gas
* this machine in good sealing with the gasket of interface between the main spindle and driving spindle
Technical Specification :
Technical Specification :
| Model | HT200 |
| Hot Tapping Range | DN50,80,100,150, 200mm |
| Working Pressure | PN10, 16, 25 bar |
| Stroke | 400mm |
| Spindle Speed | 40 r/min |
| Rated Power | 1.5 Kw |
| Rated Voltage | 220V |
| Feeding Volume | 0.07-0.2 mm/r |
| Hot Tapping Time | 15-30 min |
