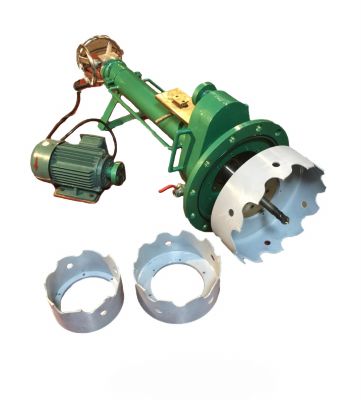

Electric Hot Tapping Machine
Product No.:Model: HT500
Electric Hot Tapping Machine
Introduction :
* hot tapping machine is designed for making entries into the lines under pressure
* hot tapping machine is used to provide a branch off pipeline from existing main pipe .
* suit for Carbon Steel Pipe, Ductile Iron Pipe, Cast Iron Pipe, Plastic Pipe, AC Pipe and etc
* suit for water, oil, gas, heat lines with the operation pressure within maximum 2.5 Mpa
Advantages :
* No disruption to the system operation
* Removable motor, easy handling
* Explosion Proof Motor for pipeline with flammable medium such as crude oil or natural gas
* This machine is in good sealing with gasket of interface between main spindle and driving spindle
Introduction :
* hot tapping machine is designed for making entries into the lines under pressure
* hot tapping machine is used to provide a branch off pipeline from existing main pipe .
* suit for Carbon Steel Pipe, Ductile Iron Pipe, Cast Iron Pipe, Plastic Pipe, AC Pipe and etc
* suit for water, oil, gas, heat lines with the operation pressure within maximum 2.5 Mpa
Advantages :
* No disruption to the system operation
* Removable motor, easy handling
* Explosion Proof Motor for pipeline with flammable medium such as crude oil or natural gas
* This machine is in good sealing with gasket of interface between main spindle and driving spindle
| Model | HT500 |
| Tapping Range | DN500, 600 mm ( 20” – 24”) |
| Working Pressure | 10, 16, 25 bar |
| Stroke | 800mm |
| Spindle Speed | 25 r/min |
| Rated Power | 4Kw |
| Rated Voltage | 380V |
| Feeding Volume | 0.07-0.1 mm/r |
| Tapping Time | 30-60 min |
