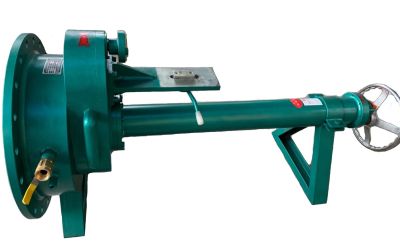

Electrical Hot Tapping Machine
Electrical Hot Tapping Machine
Introduction :
* hot tapping machine is designed for making entries into the lines under pressure
* hot tapping machine is used to provide a branch off pipeline from existing main pipe
* suit for Carbon Steel Pipe, Ductile Iron Pipe, Cast Iron Pipe, Plastic Pipe, AC pipe and etc
* suit for water, oil, gas, heat lines with the operation pressure within 2.5 Mpa
Advantages :
* No disruption to the system operation
* Removable motor, easy handling
* Explosion Proof Motor for pipeline with flammable medium such as crude oil, natural gas
* this machine in good sealing with the gasket of interface between the main spindle and driving spindle
Technical Parameter :
| Model | HT600 |
| Hot Tapping Range | DN500, 600mm |
| Working Pressure | PN10, 16, 25 bar |
| Stroke | 800mm |
| Spindle Speed | 25 R/min |
| Rated Power | 4KW |
| Rated Voltage | 380V |
| Feeding Volume | 0.07-0.1mm |
| Hot Tapping Time | 30-60 min |
