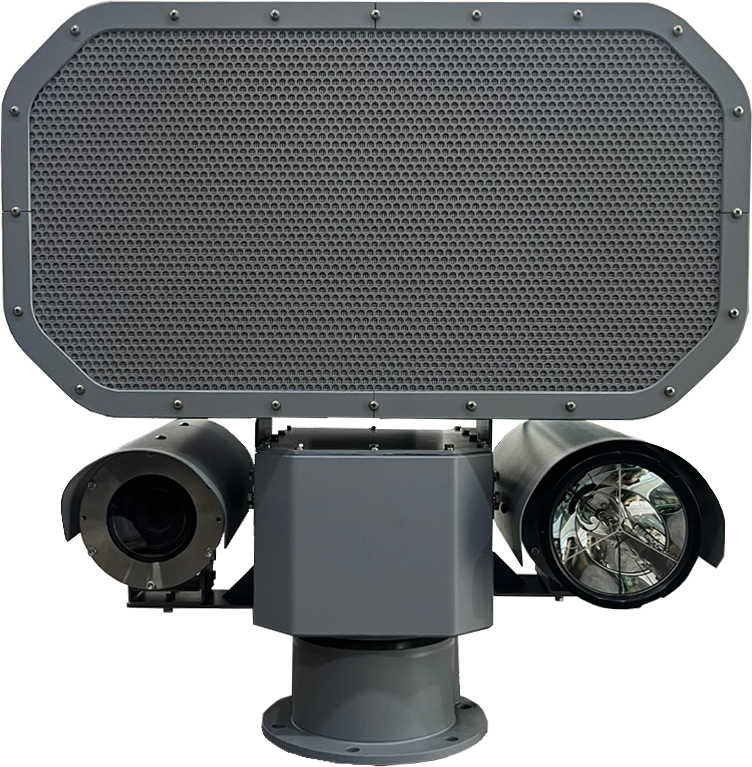

LMS-4000RXL – Ultra-Long-Range Acoustic Hailing Device (AHD / LRAD-Type)
The Revoluce LMS-4000RXL is a premium, ultra-long-range Acoustic Hailing Device engineered for extreme-distance communication, precision sound projection, and high-power non-lethal deterrence. Designed for defence forces, maritime security, industrial operations, coastal surveillance, and wildlife-control applications, the LMS-4000RXL offers exceptional clarity, narrow-beam accuracy, and powerful output suitable for India, the Middle East, and harsh marine/coastal environments.
Equipped with advanced straight-sound projection technology and high-efficiency multi-driver architecture, it delivers unmatched long-range intelligibility, making it ideal for port security, border protection, offshore platforms, disaster-management communication, and large-area emergency broadcasting.
| Category | Specification | Details |
|---|---|---|
| Acoustic Performance | Maximum Peak Output | 160 dB @ 1 m, A-Weighted |
| Frequency Response | 350 Hz – 7.0 kHz | |
| Sound Projection | ±10° at 1 kHz / –3 dB | |
| Communication Range | Up to 4,500 m (ideal conditions) | |
| Output Power | RMS Power | 800 Watts RMS |
| Environmental Performance | Hot Operating Temperature | +60 °C |
| Cold Operating Temperature | –30 °C | |
| Hot Storage Temperature | +70 °C | |
| Cold Storage Temperature | –40 °C | |
| Mechanical | Physical Dimensions (Emitter) | Approx. 400 mm × 750 mm × 360 mm |
| Weight | ≈ 18–19 kg | |
| Certification | Weather Protection | IP67 (Dustproof / Waterproof) |
Why Choose the LMS-4000RXL?
✔ Ultra-Long-Range Performance
160 dB peak output paired with a precision ±10° beam gives extremely long reach up to 4.5 km, ideal for border patrol, naval forces, and large-area installations.
✔ Exceptional Directional Accuracy
A tighter beam width than standard LRAD-type systems ensures maximum clarity at long distances while reducing unwanted noise spill.
✔ Rugged, Weatherproof Construction
The IP67 enclosure withstands marine spray, saltwater, coastal humidity, desert dust, and extreme heat — perfect for India, UAE, Oman, and KSA operational conditions.
✔ High-Efficiency Power System
The 800 W RMS system supports powerful warnings, emergency alerts, and long-duration broadcasting without performance degradation.
✔ Mission-Ready Engineering
Optimised for defence forces, ports, airports, refineries, offshore rigs, and disaster-management agencies, the LMS-4000RXL provides reliable long-range acoustic communication and non-lethal deterrence in critical operations.
